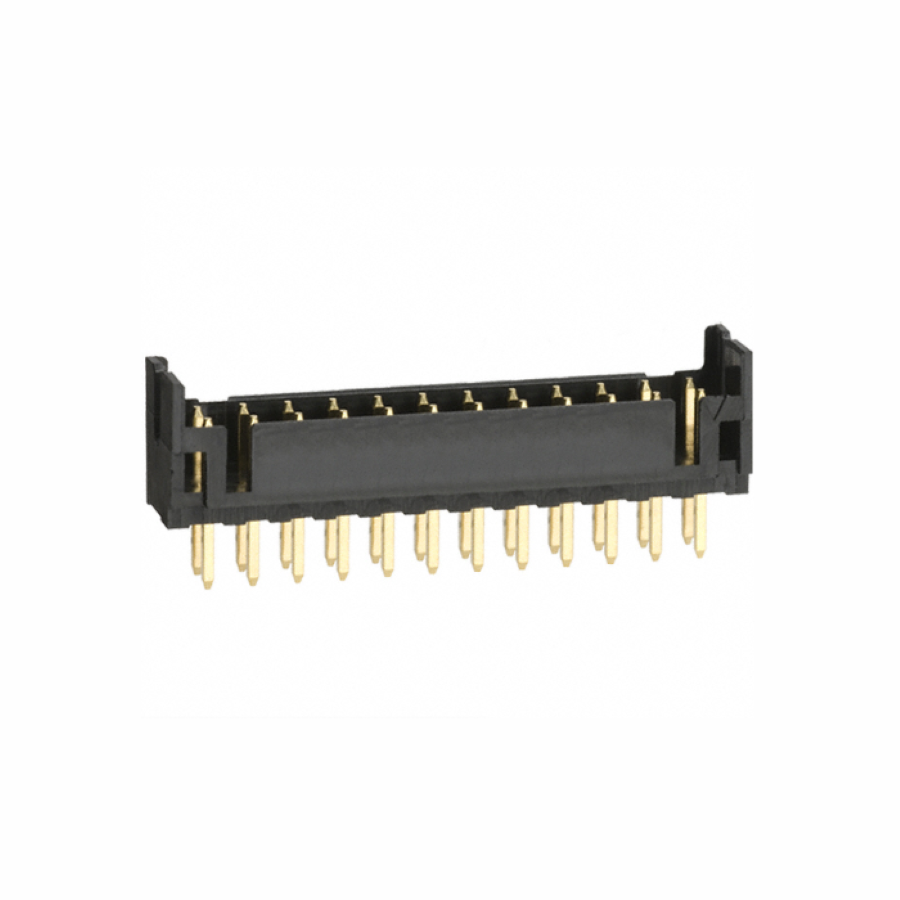

DF11-24DP-2DSA(01)
Manufacturer:
Hirose Electric
Mfr.Part #:
DF11-24DP-2DSA(01)
Datasheet:
Description:
Headers and Wire Housings Through Hole Header, Male Pin Number of Positions:24 Pitch:2 mm
| Parameter | Value |
|---|---|
| Length | 26 mm |
| Width | 5 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -30 °C |
| Height | 6.6 mm |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Lead Pitch | 2 mm |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2 mm |
| Current Rating | 2 A |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 10 months ago) |
| Color | Black |
| Gender | Pin (Male) |
| Number of Contacts | 24 |
| Connector Type | Header, Male Pin |
| Number of Positions | 24 |
| Number of Rows | 2 |
| Row Spacing | 2 mm |
| Housing Material | Polyamide |
| Fastening Type | Detent |
| Housing Color | Black |
| Contact Mating Length | 2.9972 mm |
| Mating Post Length | 3 mm |
| Contact Voltage Rating (AC) | 250 V |
| Contact Voltage Rating (DC) | 250 V |
| Termination Post Length | 3 mm |
| Contact Pitch | 2 mm |
Stock: 96
Distributors
pcbx
pcbxUnit Price$1.59616
Ext.Price$1.59616
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.59616 | $1.59616 |
| 10 | $1.35763 | $13.57630 |
| 25 | $1.34730 | $33.68250 |
| 50 | $1.33704 | $66.85200 |
| 100 | $1.32685 | $132.68500 |
| 300 | $1.16672 | $350.01600 |
| 500 | $1.02591 | $512.95500 |
| 1000 | $0.95154 | $951.54000 |
